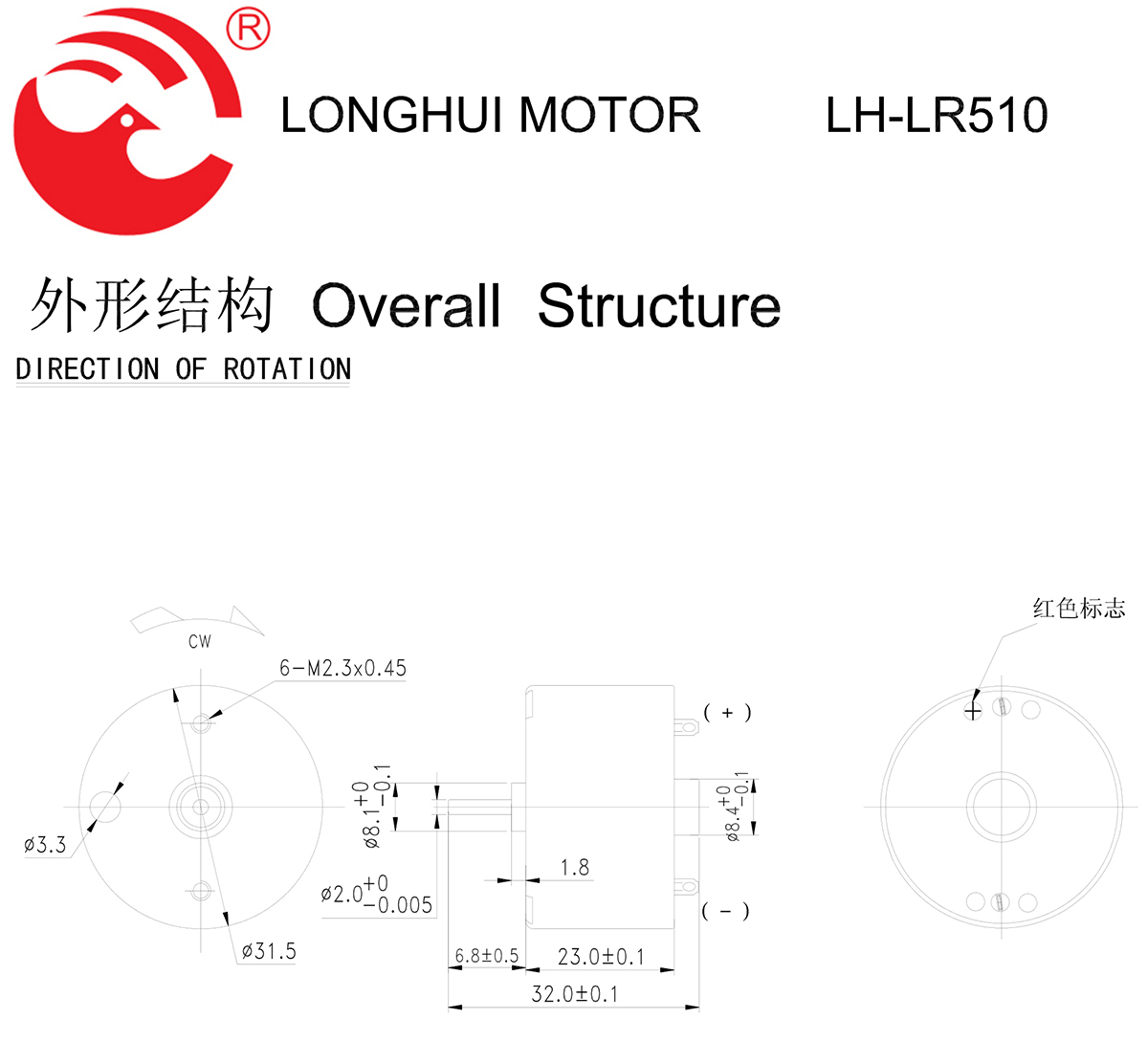

LH-LR510 DC precision motor

SPEED：3200rpm

CURRENT：0.030A

TORQUE：21.0g.cm

OUTPUT：0.59W

Consultation

Product Details

型號 MODEL	電壓 VOLTAGE		無負荷 NOLOAD		最大效率點 AT MAXIMUM EFFICIENCY					扭力STALL
	使用范圍 OPERATING RANGE	額定值NOMINAL	轉速SPEED	電流 CURRENT	轉速SPEED	電流CURRENT	轉矩TORQUE	功率OUTPUT	效率 EFF	扭力STALL
	使用范圍 OPERATING RANGE	額定值NOMINAL	rpm	A	rpm	A	g.cm	W	%	g.cm
LRF510NM-16350-31V	1.8-10V	6VCONSTANT	3200	0.030	2720	0.160	21.0	0.59	62.2	140.0
LRF510NM-17290-31V	1.8-10V	6VCONSTANT	4300	0.040	3605	0.210	21.0	0.78	61.3	145.0
LRF510NM-15380-31V	1.8-14V	12VCONSTANT	6300	0.040	5338	0.220	29.0	1.59	60.9	190.0
